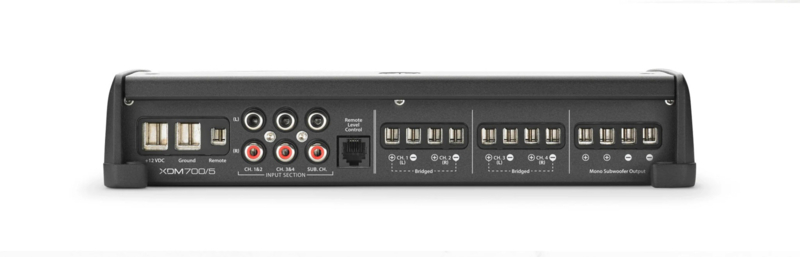

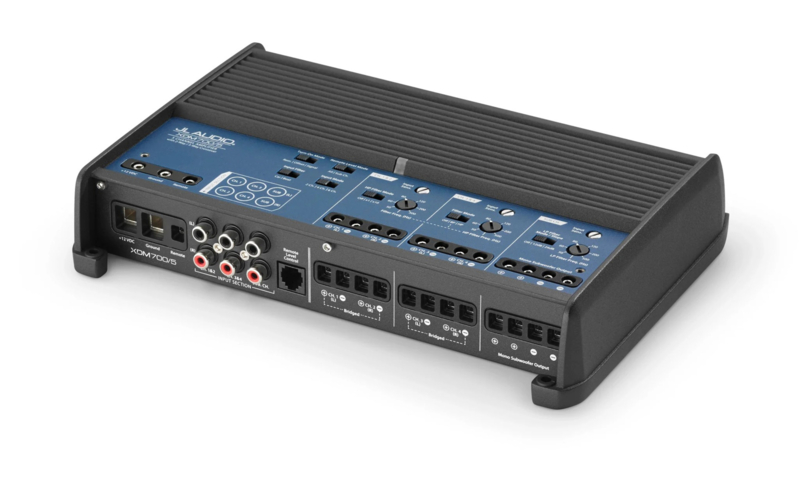

JL Audio XDM700/5

Artikel 1 van 8
€ 889,95 (inclusief btw)
Overzicht

5 kanaals klasse XDM Marine Versterker 4 x 75W + 1 x 300W

The XDM700/5 is ideal for a complete audiophile-grade, subwoofer + four satellite system, and it fits comfortably in just about any boat's weather-tight compartments. With this incredible little amplifier, you can drive two pairs of quality component speaker systems with plenty of clean power (75 W x 4 @ 4 Ω), while also delivering a stout 300 W of power to a subwoofer system. The breakthrough that makes this much power possible in such a small chassis is our NexD™ switching design.

The XDM700/5 includes a 12 dB / octave high-pass filter for one main channel pair, a 12 dB octave high-pass or bandpass filter for the other main channel pair, plus a variable slope low-pass filter for its subwoofer channel. All three filters offer continuously variable cutoff frequency selection from 50-500 Hz. This amplifier's filters can also be configured as a true 3-way crossover, with a low-pass filter for the subwoofer channel, a bandpass filter on Ch. 3 & 4, and a high-pass filter on Ch. 1 & 2. An "x10" multiplier switch on the Ch. 1 & 2 high-pass filter allows its cutoff frequency to be adjusted from 50-500 Hz or 500-5000 Hz. With the addition of an HD-RLC remote level control (sold separately), the amplifier's subwoofer channel level or overall level can be directly controlled from a remote location.

This marine amplifier features white and gray powder-coat finishes, a gasketed cover for the controls and stainless steel hardware for durability in the marine environment.

Specificaties:

Max Vermogen (RMS)4 x 75watt (@ 4Ω) 1 x 180wattt (@ 4Ω)
Frequency Response (Main Channels)12 Hz - 22 kHz (+0, -1dB)
Frequency Response (Subwoofer Channel)10 Hz - 1 kHz (+0, -1dB)
S/N Ratio, referred to highest rated power (Main Channels)>104 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W>84 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 Ω>150 / 50 Hz
Damping Factor @ 2 Ω>75 / 50 Hz
THD+N @ Rated Power (Main Channels)<1% @ 2 Ω per Ch.
THD+N @ Rated Power (Subwoofer Channels)<1% @ 2 Ω per Ch.
Input Voltage Range @ RCA Inputs100 mV - 4 V RMS
Min.Copper Power / Ground Wire Gauge4 AWG wire
Fuse Rating60 A (AFS, AGU or MaxiFuse™)
